Product Overview

The X51216P-G series full Gigabit Layer 2 managed PoE switch features 16 Gigabit ports and 2 Gigabit uplink SFP optical slots. Ports 1-16 support IEEE 802.3af/at standard PoE power supply, with a single port PoE power output up to 30W. The MS316GP-2GF service ports support 4KV ESD surge protection. As a PoE power supply device, it can automatically detect and identify compliant powered devices (PDs) and provide power through the network cable. It is suitable for supplying power to PoE terminal devices such as wireless APs, IP cameras, IP phones, and visual intercom systems for building access control, making it ideal for high-density PoE power supply network environments like hotels, campuses, parks, shopping centers, banks, tourist attractions, dormitories, and SMB (Small and Medium-sized Businesses).
It supports L2+ management features, including IPv4 static routing, comprehensive security mechanisms, complete ACL/QoS strategies, and rich VLAN functionalities, making it easy to manage and maintain. It also supp

orts multiple network redundancy protocols like STP/RSTP/MSTP (recovery time <50ms) and ERPS (reco

very time

 <20ms) ring network protocols to enhance link backup and network reliability. When a one-way network failure occurs, it can quickly restore communication, ensuring uninterrupted transmission for critical communications. Depending on actual application needs, it provides PoE power management, port traffic control, VLAN configuration, QoS, LACP, IGMP, and DHCP configuration through Web, CLI, SNMP, Telnet, and other network management methods。

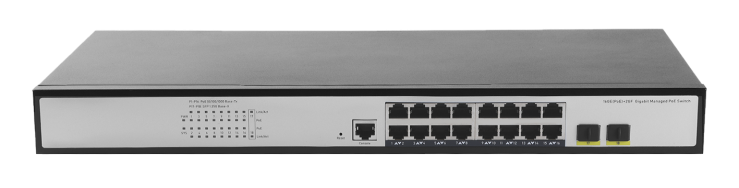

X51216P-G: 16 * 1G RJ45 POE Copper + 2 * 1G SFP

Size: 440(L)*190(W)*45(H)mm

Product Features

Ø The single-port PoE power output reaches up to 30W, supporting adaptive af/at standards. It is widely compatible with various network terminals, supporting PoE management, remote PoE port reboot, and real-time power status monitoring.

Ø Dual optical uplink ports enable long-distance fiber transmission, suitable for various ring/chain network topologies and network expansion, making networking simpler.

Ø Full Gigabit high-speed transmission ensures stable and reliable high-bandwidth communication, supporting per-port rate and flow control. It enables 10Mbps transmission over distances of up to 250 meters, easily solving long-distance communication and power supply issues, meeting diverse user needs.

Ø Equipped with an enterprise-grade high-bandwidth switching chip, high backplane capacity, and large buffer, it reduces network congestion.

Ø Supports automatic MAC address learning and updating, as well as Auto MDI/MDI-X functionality for port auto-flip.

Ø The service ports support 4KV surge (lightning) protection, PoE short-circuit, and overload protection for safer and more reliable use.

Ø The device is housed in a precision steel-forged metal casing, which shields against interference, provides robust heat dissipation, and is sturdy, rust-resistant, and durable.

Powerful Service Capabilities

Powerful Service Capabilities
 Supports 128 IPv4 static routing entries and ARP protocol with a maximum of 1024 entries.
 Flexible port bandwidth and traffic configuration, with DDMI (Digital Diagnostic Monitoring Interface) for optical ports, enabling refined network management.
 Supports IEEE 802.1Q VLAN, protocol VLAN, and QinQ VLAN, allowing users to flexibly divide VLANs as needed.
 Supports QoS with three priority modes: port-based, 802.1P-based, and DSCP-based, and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
 Supports ACL (Access Control List), allowing flexible security access control by configuring matching rules, processing operations, and time permissions to filter data packets.
 Supports IGMP V1/V2 multicast protocol and IGMP Snooping V1/V2/V3, meeting the needs of multi-terminal HD video surveillance and video conferencing.
 Supports STP/RSTP/MSTP spanning tree protocol and ERPS fast ring network protocol, eliminating Layer 2 loops and enabling link backup.
 Supports static and dynamic aggregation (LACP), effectively increasing link bandwidth, enabling load balancing, link backup, and improving link reliability.
Comprehensive Security Features
 Supports web interface user authentication.
 Supports CPU protection to prevent large data flows from attacking the switch itself.
 Supports 802.1x authentication, remote RADIUS, and TACACS+ authentication.
 Hardware supports IP ACL, MAC ACL, port filtering functions, MAC address binding, and multi-level binding of IP+MAC+VLAN+port based on ports.
 Supports DHCP Snooping V1/V2/V3, port isolation, and broadcast storm suppression on ports.
Convenient Operation and Maintenance
 Supports various management and maintenance methods such as web management, CLI commands (Console, Telnet), and SNMP (V1/V2c/V3).
 Supports encryption methods like HTTP/HTTPS and SSH, ensuring safer management.
 Supports firmware updates/upgrades via HTTP/TFTP, configuration file upload/download, and one-click system configuration restoration.
 Supports RMON, system logs, and port traffic statistics, facilitating network optimization and transformation.
 Supports LLDP, making it easy for the network management system to query and assess link communication status.
 Supports CPU monitoring, memory monitoring, Ping detection, and cable diagnostics.

Product Specification

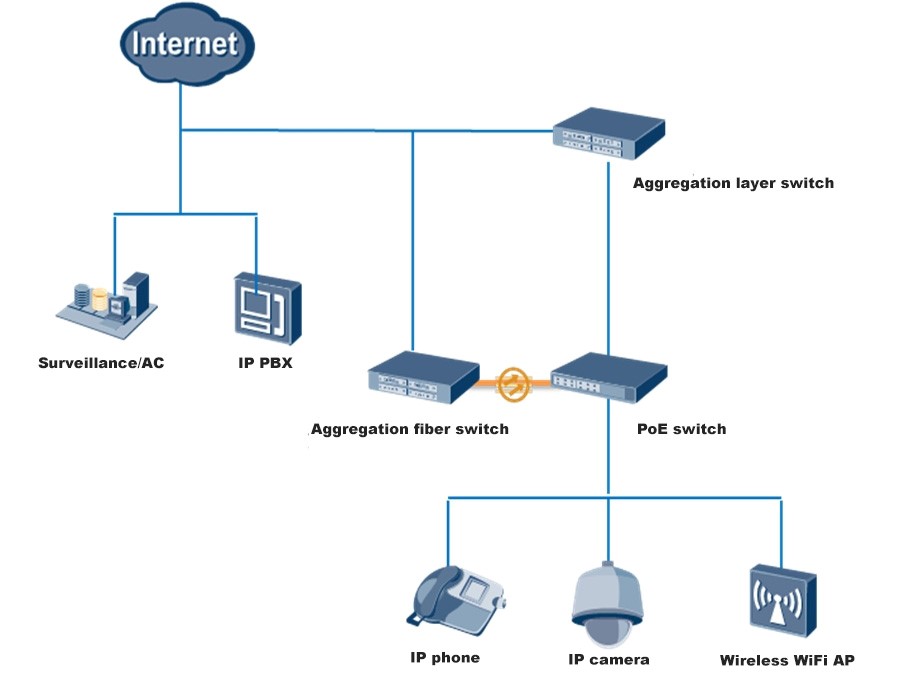

Application

订单信息：
