Product Overview
The X5128P-D is a self-developed next-generation fully Gigabit L2 managed POE Ethernet switch from Shenzhen Xallcom Technology Co., Ltd. featuring 8*10/100/1000Mbps POE downlink ports compliant with IEEE802.3af/at standards and supporting 2*GE SFP fiber-optic uplink ports, its total power budget is up to 120W. This switch provides simple and convenient installation and maintenance methods, and rich business features which creates a fast, secure, reliable, high-performance and cost-effective Ethernet network solution for small and medium-sized businesses and enterprises, Internet cafes, hotels, schools and other Ethernet access scenarios

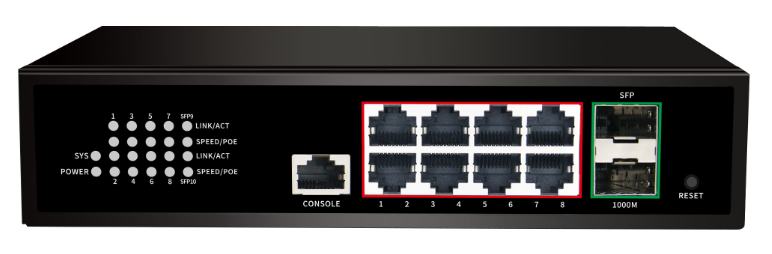

X5128P-D: 8 * 1G RJ45 POE Copper + 2 * 1G SFP Fiber
Size: 200(L)*140(W)*45(H)mm
Product Features
² Gigabit Layer 2 Managed Switch
² 8 Ports of 10/100/1000Base-T RJ45
² 2 Gigabit SFP Fiber Ports
² Compliant with IEEE 802.3at Power over Ethernet (PoE) with PSE (Power Sourcing Equipment) function
² Backward compatible with IEEE 802.3af Power over Ethernet
² Supports up to 8 ports for IEEE 802.3af/802.3at powered devices
² Maximum power output of 30 watts per PoE port
² Automatic detection of powered devices (PD)
² Circuit protection to prevent power interference between ports
² PoE power management
Product Specification
|
Hardware Specifications |
|||
|
Protocols |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w,IEEE 802.1d ,IEEE 802.1S IEEE 802.1X STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) ERPS ring network protocol |
||
|
Transmission Distance |
10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤1000 meter) 1000BASE-SX: 62.5μm/50μm MMF(2m~550m) 1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
||
|
Forwarding Mode |
Store and forward(full wire speed) |
||
|
Backplane bandwidth |
20Gbps （None blocking） |
||
|
Packet Forwarding Rate |
14.88Mbps |
||
|
MAC Address Table |
8K |
||
|
Jumbo frame |
9.6Kbyte |
||
|
Port Features |
10/100/1000BaseT(X) automatic detection, Full/half duplex auto MDI/MDI-X |
||
|
Port Number |
8*10/100/1000Mbps Self Adaptive RJ45 port(Auto MDI/MDIX) 2*GE SFP slots 1*RJ45 Console serial port |
||
|
LED Indicator |
Power, SYS, Link/Act: 10/100/1000Mbps, POE |
||
|
Power |
Built in power base board Input：AC110-240V，50/60HZ Whole Power≤120W |
||
|
Dimensions |
200mm×140mm×45mm (L×W×H) |
||
|
Environment |
Working temperature: -10℃～+55℃ Storage temperature: -40℃～+70℃ Operating humidity:10%～90% RH none condensation Storage humidity:5%～90% RH none condensation |
||
|
Software Specifications |
|
||
|
Port Management |
Enable/Disable port Speed, duplex, MTU setting Flow-control setting Port information view |
|
|
|
Port Mirroring |
Support port and aggregation group access direction |
|
|
|
Port Speed Limiting |
Support port speed limit, the granularity of the speed limit is determined by the chip |
|
|
|
Port Isolation |
Support port isolation setting |
|
|
|
Storm control |
Support location unicast, unknown multicast, broadcast storm control |
|
|
|
Link Aggregation |
Support static manual aggregation, support VLACP dynamic aggregation |
|
|
|
VLAN |
Access/Trunk/Hybrid Support VLAN division based on port, protocol and MAC, support QINQ Support GVRP dynamic VLAN registration Voice VLAN (support required) |
|
|
|
MAC |
Support static add and delete MAC address learning quantity limit Support dynamic aging time setting |
|
|
|
Spanning Tree |
Support 802.1d（STP）; Support IGMP-snooping； Support 802.1S（MSTP） |
|
|
|
Multicasting |
Support static add and delete；Support IGMP-snooping； Support MLD-snooping；Support V1/2/3 dynamic multicast snooping |
|
|
|
DDM |
Support SFP/SFP+DDM |
|
|
|
ACL |
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number |
|
|
|
QOS |
Classification based on 802.1P (COS); classification based on DSCP. Classification based on source IP, destination IP, port number; support for SP, WRR scheduling policies. Support traffic speed limit CAR |
|
|
|
LLDP |
Support LLDP link discovery protocol |
|
|
|
User Setting |
Add/Remove Users |
|
|
|
Log |
User login, operation, status, event record log |
|
|
|
Anti-attack |
DOS Defense Support for CPU protection, limiting the rate of upgoing CPU messages ARP binding (IP, MAC, PORT binding) |
|
|
|
Certification |
Support 802.1X port authentication; support AAA authentication |
|
|
|
Network Diagnosis |
Support ping、telnet、trace |
|
|
|
System Administration |
Device reset, configuration save/revert, upgrade management, time setting, etc. |
|
|
|
Management Function |
|
||
|
CLI |
Support serial port command line management |
|
|
|
TELNET |
Support telnet remote management |
|
|
|
SSH |
Support SSHV1/2 remote management |
|
|
|
SNMP |
Support V1/2C/3 Support trap: cold start, warm start, link down and link up |
|
|
|
Web |
Support two levels of settings, two or three levels of view |
|
|
|
RMON |
Support RMONV1 |
|
|
|
POE Configuration |
POE configuration, POE scheduling management, etc. |
|
|
|
|
Description |
|
X5128P-D |
8 * 1G RJ45 PoE Copper + 2 * 1G SFP Fiber L2 Managed Commercial Switch, Support PoE/PoE+ , IEEE 802.3af/at standards, Max POE Output Power: 120W, Power Supply: AC110-240V/50-60Hz, Iron shell Size 200×140×45mm |
