X81RJ10-C:10/100/1000BASE-T RJ45 port 100m commercial copper port module
X81RJ10-C:10/100/1000BASE-T RJ45 port 100m commercial copper port module

Overview


10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).

   Feature


   Up to 1.25 Gb/s bi-directional data links

l  Hot-pluggable SFP footprint

l  Low power dissipation(1.05W typical)

l  Compact RJ-45 connector assembly

l  Fully metal enclosure, for lower EMI

l  RoHS compliant and lead-free

l  Single +3.3V power supply

l  10/100/1000 BASE-T operation in host systems with SGMII interface

l  1.25 Gigabit Ethernet over CAT 5 cable

Case operating temperature: 0°C to +70°C


SFP to Host Connector Pin Out


Figure 1. Diagram of host board connector block pin numbers and names

Pin

Symbol

Name/Description

Ref.

1

VEET

Transmitter Ground  (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault. Not supported.



3

TDIS

Transmitter Disable. Not supported.



4

MOD_DEF(2)

Module Definition 2. Data line for Serial ID.

2

5

MOD_DEF(1)

Module Definition 1. Clock line for Serial ID.

2

6

MOD_DEF(0)

Module Definition 0. Grounded within the module.

2

7

Rate Select

No connection required



8

LOS

Loss of Signal indication.  Logic 0 indicates normal operation.

3

9

VEER

Receiver Ground  (Common with Transmitter Ground)

1

10

VEER

Receiver Ground  (Common with Transmitter Ground)

1

11

VEER

Receiver Ground  (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out.  AC Coupled



13

RD+

Receiver Non-inverted DATA out.  AC Coupled



14

VEER

Receiver Ground  (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply



16

VCCT

Transmitter Power Supply



17

VEET

Transmitter Ground  (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.



19

TD-

Transmitter Inverted DATA in.  AC Coupled.



20

VEET

Transmitter Ground  (Common with Receiver Ground)

1

Notes:

1. Circuit ground is connected to chassis ground

2. Should be pulled up with 4.7k - 10k Ohms on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF(0) pulls line low to indicate module is plugged in.

3. LVTTL compatible with a maximum voltage of 2.5V.

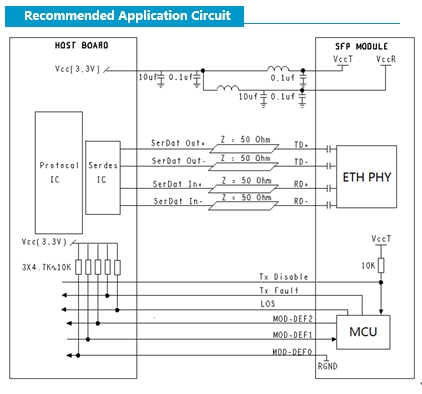

3.3V Electrical Power Interface



The 10/100/1000 BASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.

+3.3 Volt Electrical Power Interface

Parameter

Symbol

Min

Typ.

Max

Unit

Notes/Conditions

Supply Current

Is



320

375

mA

1.2W max power over full range of voltage  and temperature.

See caution note below

Input Voltage

Vcc

3.13

3.3

3.47

V

Referenced to GND

Maximum Voltage

Vmax





4

V



Surge Current

Isurge





30

mA

Hot plug above steady state

current.  See caution note

below



















Caution: Power consumption and surge current are higher than the specified values in the SFP MSA

 Low-Speed Signals


MOD_DEF(1)  (SCL)  and  MOD_DEF(2)  (SDA),  are  open  drain  CMOS  signals  (see section VII, "Serial Communication Protocol").   Both MOD_DEF(1) and MOD_DEF(2) must be pulled up to host_Vcc

Low-Speed Signals, Electronic Characteristics

Parameter

Symbol

Min

Max

Unit

Notes/Conditions

SFP Output LOW

VOL

0

0.5

V

4.7k to 10k pull-up to host_Vcc, measured at host side of connector

SFP Output HIGH

VOH

host_Vcc -0.5

host_Vcc + 0.3

V

4.7k to 10k pull-up to host_Vcc, measured at host side of connector

SFP Input LOW

VIL

0

0.8

V

4.7k to 10k pull-up to Vcc, measured at SFP side of connector

SFP Input HIGH

VIH

2

Vcc + 0.3

V

4.7k to 10k pull-up to Vcc, measured at SFP side of connector















 High-Speed Signals

All high-speed signals are AC-coupled internally.

Parameter

Symbol

Typ.

unit

Notes/Conditions

Line Frequency

fL

125

MHz

5-level encoding, per IEEE 802.3

Tx Output Impedance

Zout,TX

100

Ohm

Differential, for all frequencies between 1MHz and 125MHz

Rx Input Impedance

Zin, RX

100

Ohm

Differential, for all frequencies between 1MHz and 125MHz









High-Speed Electrical Interface, Host-SFP

Parameter

Symbol

Min

Typ

Max

Unit

Notes/Conditions

Single ended data input

swing

Vinsing

250

1200

mV

Single ended

Single ended data output

swing

Voutsing

350

800

mV

Single ended

Rise/Fall Time

Tr,Tf

175



psec

20%-80%

Tx Input Impedance

Zin

50



Ohm

Single ended

Rx Output Impedance

Zout

50



Ohm

Single ended
















General Specs

General

Parameter

Symbol

Min

Typ

Max

Unit

Notes/Conditions

Data Rate

BR

10



1000

Mb/sec

IEEE 802.3 compatible.

See Notes 2 through 4 below

Cable Length

L





100

m

Category 5 UTP.  BER










Notes:

1. Clock tolerance is +/- 50 ppm

2. By default, 10/100/1000 BASE-T is a full duplex device in preferred master mode

3. Automatic crossover detection is enabled.  External crossover cable is not required

4. 10/100/1000 BASE-T operation requires the host system to have an SGMII interfacewith no clocks.

Environmental Specs



Environmental Specifications

Parameter

Symbol

Min

Max

Unit

Notes

Case Operating Temperature

Tcase

0

70

°C

-10

80

°C

-40

85

°C

Storage Temperature

Tsto

-40

85

°C

Ambient temperature










Serial Communication Protocol

10/100/1000 BASE-T support the 2-wire serial communication protocol outlined in the SFP MSA. It uses an Atmel AT24C02B 256 byte EEPROM with an address of A0h.

Serial Bus Timing Requirements

Parameter

Symbol

Min

Typ

Max

Unit

Notes/Conditions

2 C Clock Rate



0



100,000

Hz










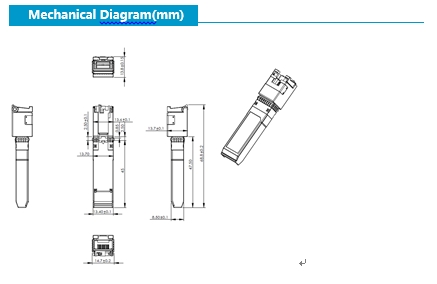

Ordering Information

Model

Description

X81RJ10-C

Commercial 1.25Gbps SFP RJ45 Optical Transceiver 100M,

Working temperature: 070
