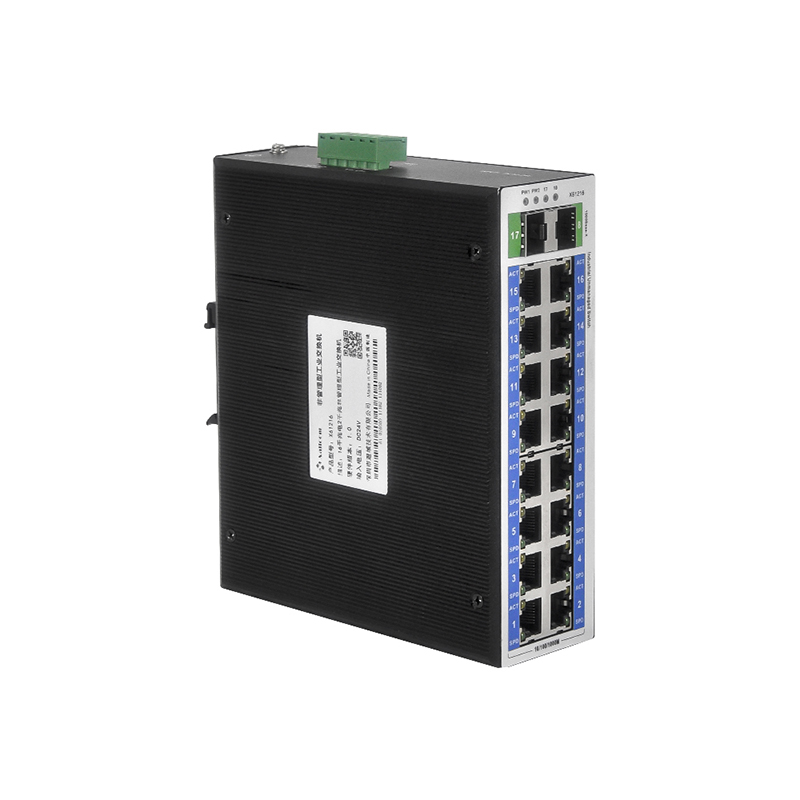

X61216：2 fiber 16 copper din-rail gigabit unmanaged industrial switch

1.Product name: 1 fiber port 8 copper port PoE din-rail unmanaged industrial switch

2.Product model: X61216

3.Product specification

Technology standard：IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE 802.3z、IEEE 802.3x

Product ports：

GE fiber port：2* 1000Base-X SFP fiber port

FE copper port: 16*10/100Base-T/1000Base-TX(2 group 2*4 10/1000/1000M RJ45),self-adaptive RJ45 port.full duplex /half duplex self-adaptive working mode,support MDI/MDI-X self-adaptive

Power supply interface: DC dual power supply interface(6-pin 5.08mm spacing terminal)

Transmission distance：twisted pair: 10BASE-T :Cat3,4,5 UTP cable(≤250m)

100/1000BASE-T(X): Cat5 or later UTP cable(≤100m)

Fiber port transmission distance is determined by the SFP optical module model, such as: multimode fiber: 1310nm, 2km; Single-mode fiber: 1310nm, 20/40/60km; 1550nm, 20/40/60/80/100/120km

Switching properties：

switch backplane band width: 52G(no block)

Transmission method: store and forward(full wire speed)

Packet forwarding rate:38.688Mpps

Jumbo frames: support 10KBytes

MAC:8K

Cache: 4.1Mbit

LED Indicators:

Power indicatior: PWR(Green light)

① GE fiber: 1000M(Green light is on)

② GE copper: Link/Act(Yellow light is on),Link-down(Yellow light is off),Link-up(Yellow light is on and flash),sending and receiving data

③ Green light "ON": 1000M, Green light " OFF": 10M or 100M

Industry standard

EMI: FCC Part 15 Subpart B Class A, EN 61000-6-4(Industrial)

EMS: IEC 61000-4-2 (ESD)，Level 4

IEC 61000-4-3 (RFS)，Level 3

IEC 61000-4-4 (EFT)，Level 4

IEC 61000-4-5 (Surge)，Level 4

IEC 61000-4-6 (CS)，Level 3

IEC 61000-4-8

Shock：IEC 60068-2-27

Free fall：IEC 60068-2-32

Vibration：IEC 60068-2-6

Power supply:

Access terminal: 6-pin 5.08mm spacing terminal
Input voltage: DC 24V
Standby power consumption:＜1W;System full-load power consumption:＜65W
Power supply supports dual power supply redundancy
Power supply supports non-polarity

Lightning protection and anti-static:
Lightning protection: network interface common mode 6KV/differential mode 2KV, power supply common mode 6KV/differential mode 4KV
Anti-static: contact type 8KV, air 15KV

Working environment:

Working temperature:-40~75℃

Storage temperature:-40~85℃

Working humidity:5%～95%（no condensation）

Net/gross weight:0.6Kg

Installation method: DIN-rail or wall-mounted

Product size: 148mm×165mm×51mm
