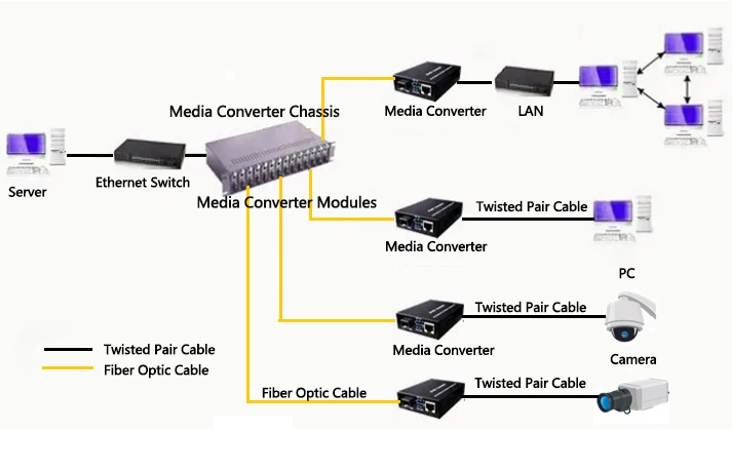

X1GJ16 is a 16-slot rack-mount gigabit media converter chassis launched by Shenzhen Xallcom Technology Co., Ltd. which can accommodate up to 16 slide-in(plug-in) media converter modules X1111N-MBJ or X1111N-SBJ. This media converter chassis can achieve long-distance transmission of 16-channel signals for Gigabit copper ports by being fully equipped with 16 slide-in media converter modules in local, and working with 16 pieces of desktop media converters in remote.
X1GJ16 has dual AC220V power supplies including one primary and a backup power. It also has overload protection, short circuit protection, over-voltage protection and insulation protection. It is an ideal product for extended transmission of multi-channel networks.
Product Features
The chassis has 16 slots and can support up to increase network distances of 16 channels.
It has dual AC220V power supplies to ensure system reliability.
The 16 slots in the chassis all support hot swappable plug-in media converters.
The copper ports of the plug-in media converter modules support 10M/100M/1000M full/half duplex.
The built-in high-efficiency switching chip in the media converter reduces broadcast storms, has CRC error checking, address filtering, and network segmentation capabilities.
It supports jumbo frames of up to 9K bytes. It has broadcast storm protection, balanced traffic flow, collision isolation and error detection.
The entire system operates in a temperature range of -20°C to +70°C.
Product Specification
|
Model |
X1GJ16(holds up to 16 pieces of X1111N-MBJ or X1111N-SBJ) |
|||
|
Interface |
||||
|
16-Slot Chassis |
With 16 slots for housing up to 16 pieces of slide-in media converter modules |
|||
|
Media Converter Modules
|
Copper Ports |
10/100/1000M RJ45 full/half duplex mode, auto MDI/MDI-X connection, transmission distance up to 100m; |
||
|
Fiber Ports |
1-piece single/multi mode single fiber, SC connector, B terminal 2-optic fiber port, transmission distance is 500m/5km/10km/20km/40km/80km which is depended by the requirements of projects. |
|||
|
Indicators |
||||
|
LED Indicators |
With 6 led indicators for slide-in media converter module: Power，TX 1000， TX Link/Act， FX 1000， FX Link/Act， FDX/Col, easier to monitor the working status of media converter modules |
|||
|
Ethernet Standards |
||||
|
Standards |
IEEE802.3 10BASE-T |
|||
|
IEEE802.3u 100BaseTX/FX |
||||
|
IEEE802.3z 1000Base-T |
||||
|
IEEE802.3ab 1000Base-T |
||||
|
IEEE802.3x flow control |
||||
|
IEEE802.1D-Spanning Tree Protocol |
||||
|
IEEE802.1Q VLAN Tagging |
||||
|
IEEE802.1p -Class of Service |
||||
|
Switching Parameters |
||||
|
Duplex Mode |
Full and half duplex mode |
|||
|
Flow Control |
Supports IEEE802.3X full duplex flow control and half duplex backplane flow control |
|||
|
Storm Suppression |
Built-in high-efficiency switching chip in the media converter reduces broadcast storms, has CRC error checking, address filtering, and network segmentation capabilities |
|||
|
Jumbo Frames |
Supports ultra long data frames which is max. 9K bytes. |
|||
|
Electrical Features |
||||
|
Hot-Swappable |
Works for slide-in media converter modules |
|||
|
Automatic Recovery |
Supports automatic recovery function to prevent crashes |
|||
|
Over Load Protection |
105%~150% rated power |
|||
|
Short Circuit Protection |
Present, automatic recovery after abnormal condition lifted |
|||
|
Over Voltage Protection |
Present, 115%~135% of standard nominal voltage(V1) |
|||
|
Dielectric Strength |
Input-output |
AC 2000V, 1 minute |
||
|
Input-ground |
AC 2000V, 1 minute |
|||
|
Dielectric Resistance |
Input-output |
≥50MΩ, DC 500V |
||
|
Input-ground |
≥50MΩ, DC500V |
|||
|
Power Features |
||||
|
16-Slot Chassis
|
Input |
Dual AC220V power for both main and standby power supply |
||
|
Input range: 85-265VAC |
||||
|
Frequency: 47~63Hz |
||||
|
Output |
Output power: 60W |
|||
|
Line regulation ±0.5%max |
||||
|
Ripple and noise(max.): (mVP-P)<1% input voltage |
||||
|
Temperature coefficient: ±0.02%/Q |
||||
|
Media Converter Modules |
Power: DC5V, powered by backplane of chassis |
|||
|
Power consumption<5w/module |
||||
|
Operating Environment |
||||
|
Operating Temp. |
-20~70°C |
|||
|
Working Humidity |
20%~90% RH (non-condensing) |
|||
|
Storage Temp. |
-40~85°C |
|||
|
Storage Humidity |
10%~95% (non-condensing) |
|||
|
Physical Properties |
||||
|
16-Slot Chassis |
Material of shell |
Aluminum alloy |
||
|
Size |
440mm(Length) *245mm(Width)* 90mm(Height) |
|||
|
Weight |
3.5kg/set |
|||
|
Installation methods |
Rack- mount |
|||
|
Handle/Panel |
Material of handle/panel |
Aluminum alloy |
||
|
Size |
113mm(Length) *78mm(Width) * 25mm(Height) |
|||
|
Weight |
0.3kg/set |
|||
|
Installation methods |
Slide-in |
|||
|
Warranty Period |
2 years |
|||

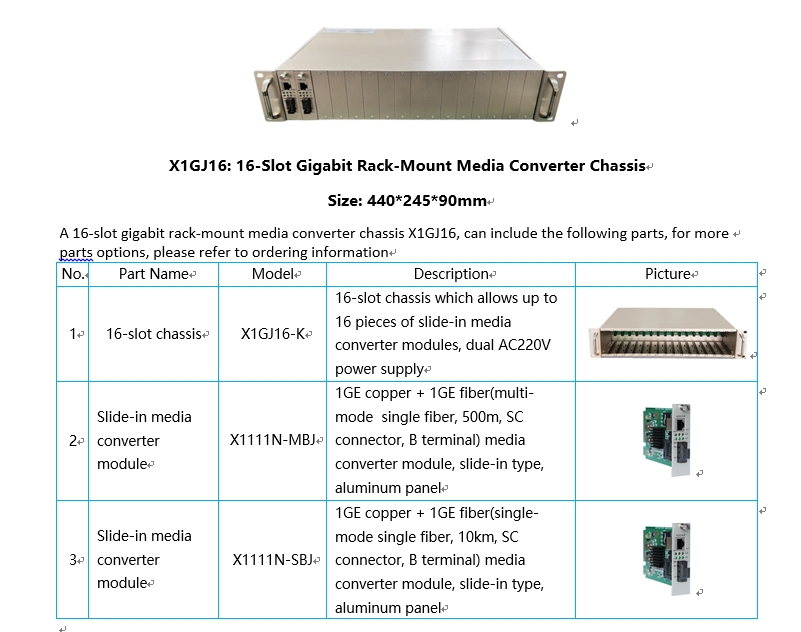

Ordering Information
|
Parent Model |
Description |
|
X1GJ16 |
Can accommodate up to 16 slide-in(plug-in) media converter modules X1111N-MBJ or X1111N-SBJ to achieve the long transmission distance of 16-channel copper signal; With dual AC220V power supply including a primary and a backup; It also has overload protection, short circuit protection, over-voltage protection and insulation protection. |
|
Child Model |
Description |
|
X1GJ16-K |
16-slot chassis housing for up to 16 slide-in media converter modules，dual AC220V power supply |
|
X1111N-MBJ |
1GE copper + 1GE fiber(multi-mode single fiber, 500m, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
|
X1111N-SBJ |
1GE copper + 1GE fiber(single-mode single fiber, 10km, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
|
X1111N-SBJ-3 |
1GE copper + 1GE fiber(single-mode single fiber, 3km, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
|
X1111N-SBJ-20 |
1GE copper + 1GE fiber(single-mode single fiber, 20km, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
|
X1111N-SBJ-40 |
1GE copper + 1GE fiber(single-mode single fiber, 40km, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
|
X1111N-SBJ-80 |
1GE copper + 1GE fiber(single-mode single fiber, 80km, SC connector, B terminal) media converter module, slide-in type, aluminum panel |
