1.Product Description
X6108S is a mini small-sized industrial switch specially for the industrial automation industry by Shenzhen Xallcom Technology Co.,Ltd.It can work well with domestic and foreign brand PLCs such as Siemens or INOVANCE, is made of die-cast aluminium, fanless, low power consumption, wide temperature and wide voltage design, passes strict industrial standards test and can adapt to industrial field environments with severe requirements for EMC, It has a reliable industrial grade design with strong anti vibration and impact resistance, and IP40 protection.It has been widely used in industrial automation, logistics and warehousing, robotics, new energy, transportation, environmental protection, military industry and other fields, and is one of the preferred brands in the industry.
2.Product Specification
Standards
IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE 802.3z、IEEE 802.3x
Device ports
GE Copper: 8* 10/100Base-T/1000Base-TX (1 group 2*4 10/1000/1000M Self-adaptive RJ45) Full/Half Duplex self-adaptive working mode, support MDI/MDI-X self-adaptive
Power supply interface: DC dual power supply interface(6-pins 5.08mm terminal
Transmission distance
Twisted pair:10BASE-T:Cat3,4,5 UTP cable(≤250m)
100/1000BASE-T(X):Cat5 or later UTP cable(≤100m)
Switching Properties
Gigabit Switch Backplane Bandwidth: 16G(No blocking)
Transmission mode: Store and forward(Full Wire Speed)
Packet Forwarding Rate: 23.8Mpps
Jumbo Frames: support 9216 bytes
MAC: 4096
Cache: 1.5Mbit
LED indicators
Power supply indicator :PWR(Green light),
Interface indicator as following：
Gigabit copper: Link/Act(Yellow light is on),Link-down(Yellow light is off)
Link-up(Yellow light is on & flash),sending and receiving data
Rate:1000M(Green light is on),Rate:10M/100M(Green light is off)
Industrial standard
EMI: FCC Part 15 Subpart B Class A, EN 61000-6-4 (Industrial)
EMS: IEC 61000-4-2 (ESD)，Level 4
IEC 61000-4-3 (RFS)，Level 3
IEC 61000-4-4 (EFT)，Level 4
IEC 61000-4-5 (Surge)，Level 4
IEC 61000-4-6 (CS)，Level 3
IEC 61000-4-8
Shock：IEC 60068-2-27
Free Fall：IEC 60068-2-32
Vibration：IEC 60068-2-6
Power supply
Access Terminal:6-pins 5.08mm
Input Voltage: DC12~48V
Standby power consumption:＜1W; Full-load power consumption:＜65W
Power supply supports dual power redundancy & anti reverse connection
Working environment
Working Temperature:-40~85℃
Storage Temperature:-40~85℃
Working Humidity:5%～95%(No condensation)
Weight
0.7Kg
Installation mode
DIN-rail mounted
Product size
(L*W*H)：103×100×41mm

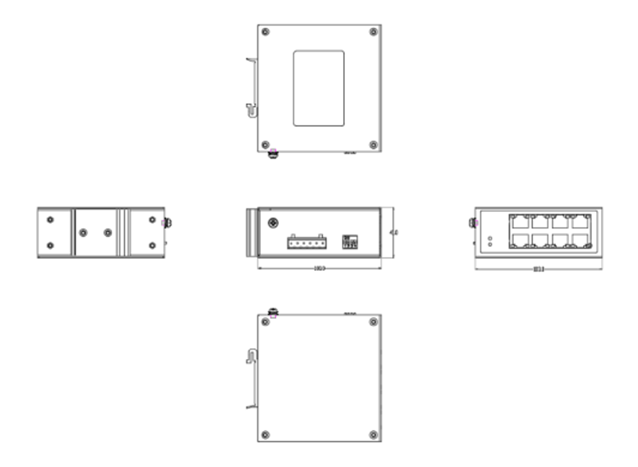

3.Product structure
4-digit dial: Capable of port isolation, VLAN division, and other functions (customized according to customer requirements)
4. Booking Information
Item
Details
X6108S
Mini Unmanaged Gigabit Industrial Switch,8*GE Copper,Working Temperature -40~85°C,Din-Rail Mounted,IP40,DC12-48V,103×100×41mm
